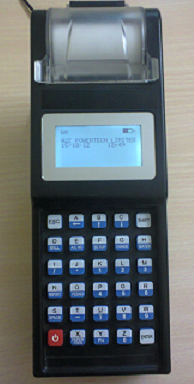

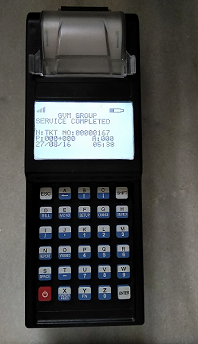

Hand Held Terminal G-8:
Display :128 x64 | Display :128 x64 |
View Area (W x H):50x25 mm | View Area (W x H):70x40 mm |
G-8 a mobile handheld data capture, billing and Collection terminal to process and transmit information to host computers in real time. The simple user friendly design allows you to operate with easy and light weight and handy. Inbuilt thermal graphic printer high clarity graphic LCD display and keypad with good user interface. The Stored data can be uploaded to a PC via USB/RS-232 serial interface and GSM/GPRS wireless interface. The Device transfers billing data on GPRS to application Server at central Data center in both PUSH &PULL manners without any manual intervention. The PC software will be used for restoring all required MIS reports in the System.
USB & RS232 Ports Battery Compartment Bill Printing SIM Card Access
1. Built-in 2inch thermal printer
2. Prints Barcode, Logo ,Image
3. Supports Four Different programmable Fonts
4. 30 Keys Elastomeric designed keypad
5. Large bright graphical display
6. Self-diagnostic features
7. Compact and Comprehensive
8. Fast-Intelligent-Versatile-Affordable
9. Lithium-Ion rechargeable battery
10. User programmable
11. Easy paper loader
12. Fast-Intelligent-Versatile-Affordable
1. TIMS in Road transport
2. Parking Management
3. Retail outlet
4. Police e- Challan
5. Utility Meter Reading & Billing
6. Tax Collection
7. Field Data Collection
8. LIC payment collection
9. Receipt Printing
10. Micro Finance
11. Toll gate management
12. Ticketing
SDK with APIs
Processor | 32 bit RISC @ 80/120 MHz |
Display | 128 x 64 pixel graphic FSTN LCD with backlight |
Memory | 512 KB Flash memory, 128 KB SRAM, 4MB data flash |
Printer | 2-inch Thermal Graphic Printer |
Interface/Connectors |
a) RS-232 (RJ11 Connector for console / Serial port) b) USB Device (Type B) c) Micro SD Card holder for extendable up to 2GB memory |
Optional |
a) Customized Software b) HF RFID Transceiver c) Wi-Fi /Blue tooth d) IRDA e) GSM/GPRS f) GPS g) 1D/2D Barcode Scanner |
Power Adaptor | AC Input 100-240V ±30 %, 50Hz ±10%, DC output 10V, 3Amp |
Battery | Rechargeable Li-ion 7.4V/2.2Ah |
Enclosure | ABS+PC |
Temperature | Operating : 0degree C to 55degree C |
Humidity | 95% RH non condensing |
EMI/EMC and Type tests | Comply As per IEC /IS standards |
Dimensions in mm | 245 x 55 x 80 ( L x w x H ) |
Weight | 400 grams |

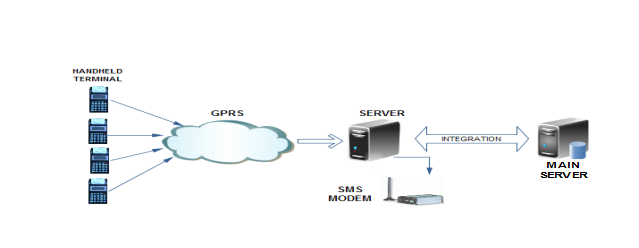

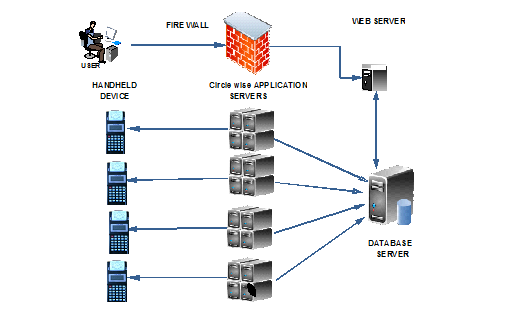

System Concept and Architecture Diagram :
