Hand Held Terminal G-8L:
G-8L a mobile handheld data capture terminal to process and transmit information to host computers in real time. The simple user friendly design allows you to operate with easy and light weight and handy. This can be integrated with external Bio-Metric finger print scanner to enhance flexibility in operations. Inbuilt thermal graphic printer enables you to print receipt for the transaction. This M-8L has high QVGA TFT LCD display and keypad with good user interface. Collected data can be uploaded to a PC via USB/RS-232 serial interface and GSM/GPRS wireless interface. Hence increases the velocity of business decisions.
USB & RS232 Ports Battery Compartment Bill Printing SIM Card Access
1. 30 Keys Elastomeric designed keypad
2. Compact and Comprehensive
3. Large bright graphical display
4. Self diagnostic features
5. Fast-Intelligent-Versatile-Affordable
6. RS-232 communication port
7. USB Device(Host)
8. Built-in RFID Transceiver
9. Built-in 2inch thermal printer
10. Lithium-Ion rechargeable battery
11. User programmable
12. Easy paper loader
13. Built-in GSM/GPRS Modem
1. Ticketing
2. Retail outlet Billing & collection
3. Utility Meter Reading & Billing
4. Field Data Collection
5. Order Booking
6. Receipt Printing
7. Parking
8. Toll gate Billing & Collection
9. Police e- Challan
10. Tax Collection
11. Inventory Management
12. Market Survey
13. Loyalty Applications
14. Micro Finance
15. Public Distribution System
SDK with APIs
| Micro Processor | ARM Cortex-A8 with Mali400 MP2 |
| CPU Speed /td> | 1 GHz |
| System Memory | 512 MB Flash memory, 1GB DDR3,up to 32GB micro SD card |
| Operation System | Linux ,kernel v3.2 |
| Display | 3.5” QVGA TFT LCD |
| Battery | Li-ion 7.4V, 2.2Ah |
| Keyboard | elastomeric type |
| Communication Module |
a) GSM/GPRS Interface Optional: a) Blue tooth,Wi-Fi b) HF RFID Transceiver c) IRDA d) GSM/GPRS e) GPS f) Custom Keyboard g) Customized Software |
| Peripheral Ports | 1x RS-232; 2x USB (HOST &Client) |
| Printer | 2/3Inch Integrated Thermal Printer (72 mm width, speed 80mm/s,no of dots/line 576) |
| Operating Temperature | 0°C to 55°C |
| Humidity | 95% RH non condensing |
| Power Adaptor | AC input 90 - 305V, 50/60Hz DC output10V, 2.5A |
| Enclosure | Poly carbonate |
| Dimensions | 230 x 60 x 108 mm ( L x H x W) |
| Weight | 400 grms |

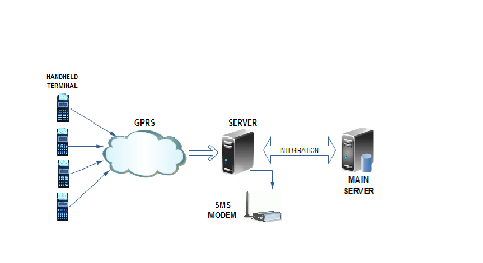

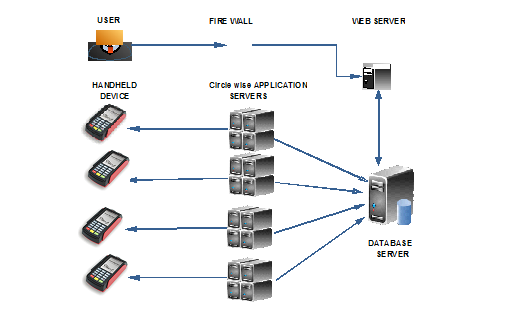

System Concept and Architecture Diagram :
