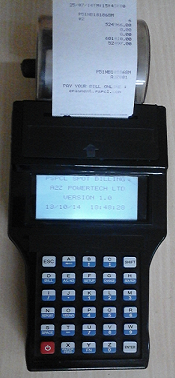

Hand Held Terminal G-8I:
G-8I a mobile handheld data capture, billing and Collection terminal to process and transmit information to host computers in real time. The simple user friendly design allows you to operate with easy and light weight and handy. Inbuilt impact printer high clarity graphic LCD display and keypad with good user interface. The Stored data can be uploaded to a PC via USB/RS-232 serial interface and GSM/GPRS wireless interface. The Device transfers billing data on GPRS to application Server at central Data center in both PUSH &PULL manners without any manual intervention. The PC software will be used for restoring all required MIS reports in the System.
USB & RS232 Ports Battery Compartment Bill Printing SIM Card Access
1. Built-in 2inch Impact printer
2. Prints Barcode
3. Supports Two Different programmable Fonts
4. 30 Keys Elastomeric designed keypad
5. Large bright graphical display
6. Self diagnostic features
7. Compact and Comprehensive
8. Fast-Intelligent-Versatile-Affordable
9. Lithium-Ion rechargeable battery
10 User programmable
11 Easy paper loader
1. TIMS in Road transport
2. Parking Management
3. Retail outlet
4. Police e- Challan
5. Utility Meter Reading & Billing
6. Tax Collection
7. Field Data Collection
8. LIC payment collection
9. Receipt Printing
10. Micro Finance
11. Waste management collection
12. Toll gate management
SDK with APIs
| Processor | 32 bit RISC @ 120 MHz |
| Display | 128 x 64 pixel graphic FSTN LCD with backlight and configurable font |
| Memory | 512 KB Flash memory, 128 KB SRAM, 4MB data flash |
| Printer | 2-inch Thermal Graphic Printer |
| Interface/Connectors |
a) RS-232 (RJ11 Connector for console / Serial port) b) USB Device (Type B) c) Micro SD Card holder for extendable memory size |
| Optional |
a) Custom Keypad b) Customized Software c) HF RFID Transceiver d) Blue tooth e) IRDA f) GSM/GPRS g) GPS h) 1D/2D Barcode Scanner |
| Power Adaptor | AC Input 100-240V ±30 %, 50Hz ±10%, DC output 10.5V, 2.5Amp |
| Battery | Rechargeable Li-ion 7.4V/2.2Ah |
| Enclosure | ABS+PC |
| Temperature | Operating : 0degree C to 55degree C |
| Humidity | 95% RH non condensing |
| EMI/EMC and Type tests | Comply As per IEC /IS standards |
| Dimensions in mm | 320 x 108 x 90 ( L x w x H) |
| Weight | 700 gms |
System Concept and Architecture Diagram :
